| Lugar de origen: | Shangdong, China |
| Nombre de la marca: | MIROC |
| Certificación: | ISO |
| Número de modelo: | Brocas del cincel de la forma cónica |
| Cantidad de orden mínima: | 100 piezas |
|---|---|
| Precio: | negotiation |
| Detalles de empaquetado: | caja del cartón o caja de madera |
| Tiempo de entrega: | 10-15days después de recibir la confirmación del pago y de la orden |
| Condiciones de pago: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Capacidad de la fuente: | 30000pcs por mes |
| Tipo: | Brocas del cincel de la forma cónica | Materiales: | carburo de tungsteno |
|---|---|---|---|
| color: | Verde, negro | Tipo de Procesamiento: | forja |
| Ángulo de la forma cónica (grado): | 7 grados | El dril afilado equipa tipos: | Pedazos de botón, pedazos cruzados, pedazos del cincel |
| Alta luz: | tungsten carbide drill bit,rock drill bits |
||

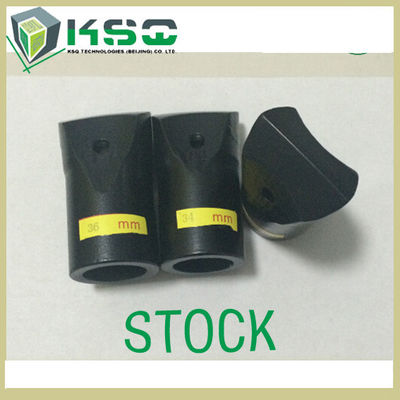

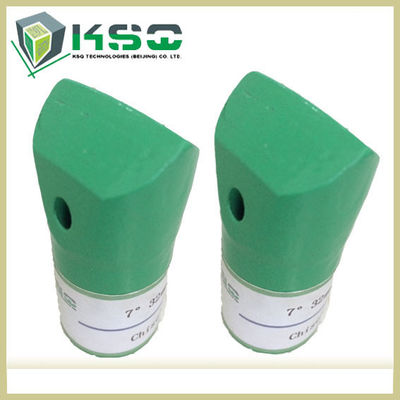

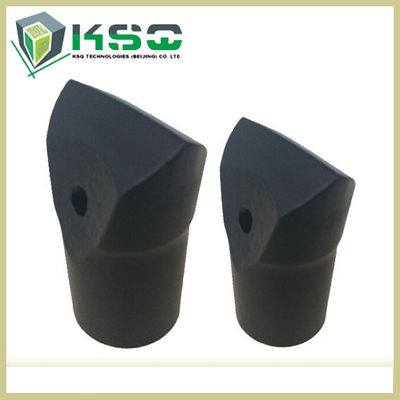

STOCK Small Diameter Taper Chisel Drill Bits for Granite Quarry
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
|
Tapered drilling tools Types |
Diameter (mm) |
Taper Angle (Degree) |
Skirt |
Weight (kg) |
|
Tapered chisel bits |
20-60mm |
4°,6°,7°,11°,12° |
Normal, Length |
0.15 - 0.45 |
|
Tapered cross bits |
32-60mm |
Normal, Length |
0.18 - 0.7 |
|
|
Tapered button bits |
30-55mm |
Normal, Length |
0.2 - 0.5 |
Applications of Chisel Drill Bit
• Underground mining
• Dimensional Stone Industry
• Tunneling,quarrying
Feature of Chisel Drill Bit
1. tapered button bits connect with tapered drill rod for drilling holes
2. Stale and mature welding technology ensure good quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. work reliable and very cost-effective
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Packaging:Carton or Wooden Box
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
•Hazardous environment
•Acts, regulations, and other government guidelines that has to be followed
•Significant differences in the way people work, mostly due to physical constraints
•Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour.
•The best solution with the most reasonable cost is a significant driver
KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.
Our portfolio includes:
Consumables used in the mining and construction industries
Equipment used in the mining and construction industries
Spare parts used for the equipment we sell for the mining and construction industries
Green technologies, such as products that reduce electric consumption or use alternate sources of energy (solar, wind, etc.)
