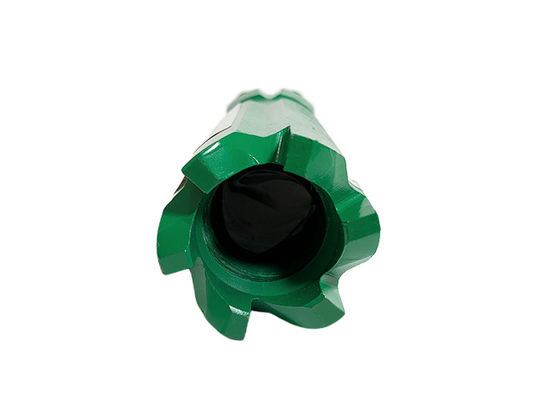

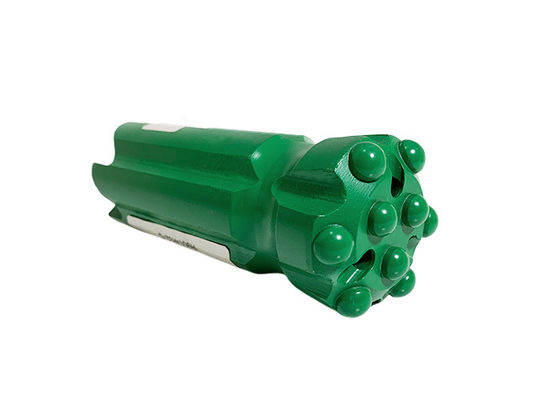

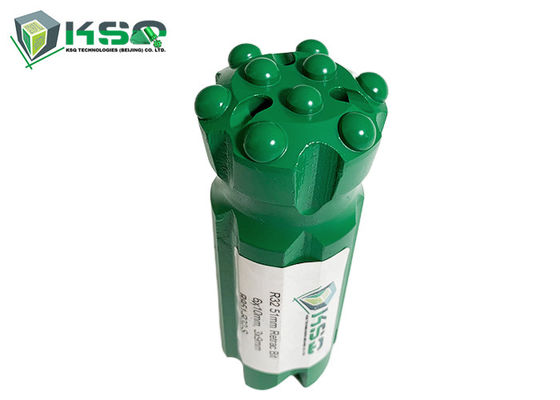

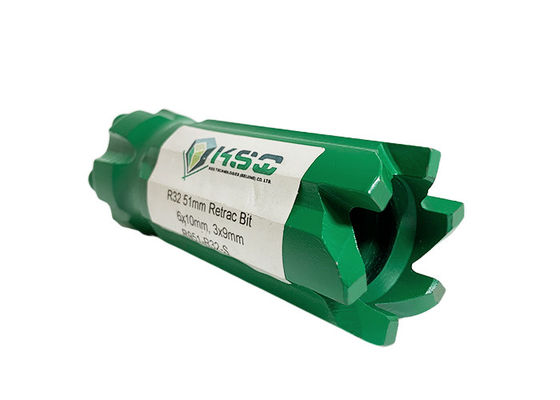

Quarrying Mining Drilling Tools T38 R32 Retrac Drop Center Button Rock Bit

Quarrying Mining Drilling Tools T38 R32 Retrac Drop Center Button Rock Bit

Quarrying Mining Drilling Tools T38 R32 Retrac Drop Center Button Rock Bit
Quarrying Mining Drilling Tools T38 R32 Retrac Drop Center Button Rock Bit
Quarrying Mining Drilling Tools T38 R32 Retrac Drop Center Button Rock Bit
Datos del producto:
Lugar de origen: Shangdong, China
Nombre de la marca: MIROC
Certificación: ISO9001
Número de modelo: Pedazos de roca del botón
Pago y Envío Términos:
Cantidad de orden mínima: 5 piezas
Precio: negotiation
Detalles de empaquetado: caja del cartón o caja de madera
Tiempo de entrega: 10-22days
Condiciones de pago: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Capacidad de la fuente: 30000pcs por mes
Contacto
Descripción detallada del producto
Tipo: Pedazos de roca del botón Hilo: T38, T45, T51
Proceso del tipo: forja Uso: Mina, haciendo un túnel, extrayendo
Alta luz:

stone drilling bits

,

mining drill bits

Quarrying Mining Drilling Tools T38 R32 Retrac Drop Center Button Rock Bit



Description

Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.



• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock



Product Name:

different rock hardness drilling button bit

Description:

For different rock hardness mining,tunneling,quarrying button bit

Button bit Made with high quality of best quality alloy steel bar and

tungsten carbide, through heat treatment.

Material:

Alloy steel bar and tungsten carbide bit

MOQ:

trial order 1-5pcs

Body Type

Normal type and retract type

Thread type

R25,R28,R32,R38,T38,T45,T51,ST58,ST68

Diameter

32mm-152mm

Button bit shape

Spherical and Ballistic

Face shape

Flat shape and Drop-center shape

Quarrying Mining Drilling Tools T38 R32 Retrac Drop Center Button Rock Bit 0Quarrying Mining Drilling Tools T38 R32 Retrac Drop Center Button Rock Bit 1

Button bit and Insert types
Spherical Button Characteristics:
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions


Ballistic Button Characteristics:
1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions



Applications of  rock drilling Bit

• Underground mining
• Tunneling,quarrying



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
