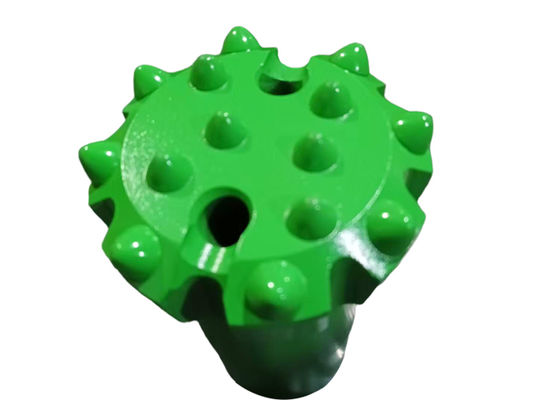

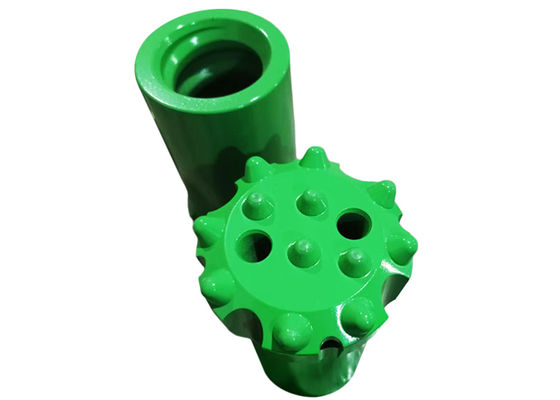

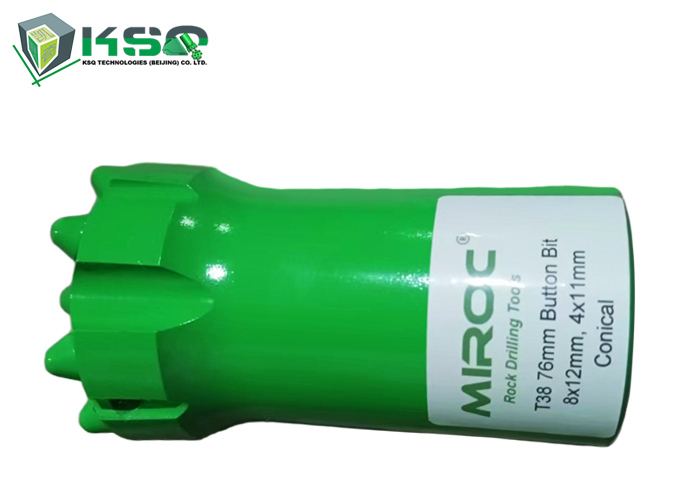

Name: T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38-76mm
Price: 508.50 USD
Availability: InStock

Inicio Productos Rock Herramientas de perforación

T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	MIROC
Certificación:	ISO
Número de modelo:	T38-76mm

Pago y Envío Términos:

Cantidad de orden mínima:	1
Tiempo de entrega:	20-30
Capacidad de la fuente:	3000

Contacto

Descripción detallada del producto

Producto:	Broca de botón T38-76mm	Forma de botón:	Botones balísticos, esféricos y compuestos.
Aplicación:	Perforación de banco, perforación de producción subterránea, perforación de pozos largos	Cuerpo:	Falda Retrac, Falda Estándar
Palabras clave:	Trépano de sondeo de roca	Uso:	Perforación de rocas
Resaltar:	T38-76mm Threaded Button Bit , Ballistic Buttons Rock Drill Bit , Spherical Buttons Tungsten Carbide Button Bit

T38-76mm Tungsten Carbide Threaded Button Bit

Product Description

Description: Threaded button bit

Raw material: Alloy steel and tungsten carbides

Thread: R25, R28, R32, R35, R38; T38, T45, T51, T60, ST58, ST68

Face: Flat front, drop center

Diameter: 35mm-127mm

Carbide: Ballistic, conical, spherical

Color: Customized

Application: Used to drill deep holes in underground mines, open pit mines, and tapholes

Customization: Thread, diameter, buttons number, button type, and flushing holes can be customized according to client's requirements and drawings

Key Features

Premium material with high-quality alloy steel and tungsten carbide from internationally renowned brands
Advanced heat treatment technology for high wear resistance
High toughness and wear resistance
Rich production experience and market feedback data from clients
Large capacity, stable quality, short lead time, competitive pricing

Specifications of Button Bits (T38)

Bit Dia. (mm)	Buttons and Size (mm)	Flushing Hole	Weight (kg)
64	3×10, 1×10 (Front) 6×11 (Gauge)	3 (Front)	1.7
70	3×10, 1×10 (Front) 6×12 (Gauge)	3 (Front)	1.8
76	3×11, 1×11 (Front) 6×12 (Gauge)	3 (Front) 1 (Side)	2.6
89	3×11, 2×11 (Front) 6×13 (Gauge)	3 (Front) 1 (Side)	3.3
