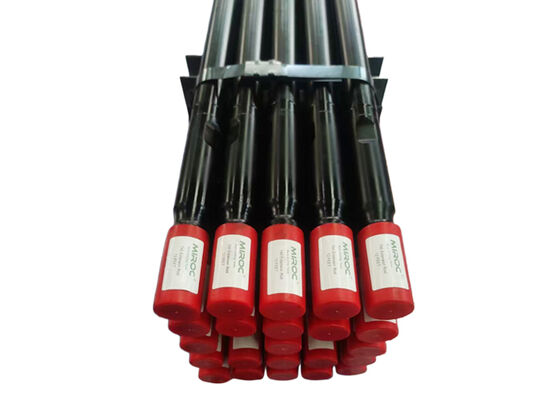

Name: T38 ,T45 China Threaded Extension MM Rock Drill Rod for Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38,T45
Price: 508.50 USD
Availability: InStock

Inicio Productos Rock Herramientas de perforación

T38 ,T45 China Threaded Extension MM Rock Drill Rod for Drilling

Datos del producto:

Lugar de origen:	Porcelana
Nombre de la marca:	MIROC
Certificación:	ISO
Número de modelo:	T38,T45

Pago y Envío Términos:

Cantidad de orden mínima:	1
Tiempo de entrega:	20-30
Capacidad de la fuente:	3000

Contacto

Descripción detallada del producto

Tipo:	BARRA DE LA EXTENSIÓN	Color:	Requerido
Aplicación:	Minería de carbón, Perforación de canteras, Construcción, Perforación de piedra	Hilo:	En el caso de las empresas de servicios de seguros, el importe de la ayuda se determinará en función
Longitud:	300 mm a 6000 mm	Ventaja:	Rendimiento alto
Resaltar:	China threaded rock drill rod , T38 T45 extension drill rod , MM rock drilling threaded rod

T38, T45 China Threaded Extension MM Rock Drill Rod for Drilling

Product Overview

In the rock drilling process, the drill rod is subjected to the impact force of the rock drill piston, high torsional stress and axial thrust through the shank adapter, as well as the additional bending stress caused by the weight of the drill rod, the reaction force of the rock and the asymmetric impact of the drilling operation. Therefore, the quality of drill rod plays a very important role in the efficient completion of rock drilling operations.

Product Specifications

Product:	Round body MM extension rod
Length:	610-7315mm
Threaded Type:	R22, R25, α330, R32, T38, T45, T51, ST58, ST68, GT60 etc.
Other Body Type:	Hexagon body
Rod Type:	Normal type (MM, outside thread of both two ends)
Suitable Machine:	Hydraulic rock drill
Suitable Block:	Granite and marble

THREADED ROCK DRILLING TOOLS - T38
Drill Rod	Length		Diameter
Drill Rod	mm	foot	mm	inch
Drill rod, T38-Round39-T38 Flushing hole 14.5mm Wrench flat 32mm	1220	4	39	1 5/9
	1525	5	39	1 5/9
	1830	6	39	1 5/9
	2435	8	39	1 5/9
	3050	10	39	1 5/9
	3660	12	39	1 5/9
	3965	13	39	1 5/9
	4270	14	39	1 5/9
	4880	16	39	1 5/9
	5530	18 1/7	39	1 5/9
	6095	20	39	1 5/9
MF-rod T38-Round39-T38 Flushing hole 14.5mm	915	3	39	1 5/9
	1220	4	39	1 5/9
	1525	5	39	1 5/9
	1830	6	39	1 5/9
	3050	10	39	1 5/9
	3660	12	39	1 5/9
	4270	14	39	1 5/9
	6095	20	39	1 5/9

Product Features

Manufactured from premium, high-strength, alloy steel
Available in hexagonal and round configurations
Designed for straighter holes with less deviation
Longer service life compared to standard rods

Performance Benefits

KSQ rods are developed and designed to give you straighter holes with less deviation and longer service life. Rock drills today generate almost unlimited impact power which makes a need to control that power and, most importantly, ensure that it is transmitted into the rock as efficiently, accurately and economically possible.

KSQ Technology: As one of China's leading threaded drill rod manufacturers, KSQ has mature expertise in raw material selection, production and processing technology, and product quality control. We can provide customers with high-quality threaded drill rods of various thread types.
